🖼 Automated Image Analysis

On this page, you will learn how to perform automated image analysis with DL_Track_US.
The images are evaluated without user input and can be scaled.
Scaling ensures that estimated muscle architectural parameters are converted into centimetre units.

Important: This type of analysis works only for single images, not videos.
All images must be contained in a single folder, for example:
DL_Track_US_v0.3.0/images.

If you have not downloaded the example dataset yet, please do so now:
DL_Track_US - Examples & Models.

📦 Unzip the folder and save it somewhere easily accessible.

---

1. Creating Image Directory & FlipFlag.txt File

• All images you want to analyze must be placed in one folder.

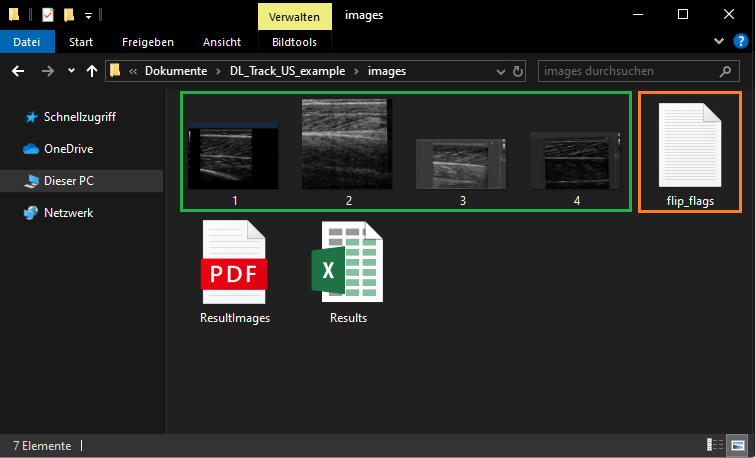

• The folder DL_Track_US_v0.3.0/images contains 4 images and a flip_flag.txt file.
• It is not required to have the flip_flag.txt file in the same folder as the images, but it is convenient.

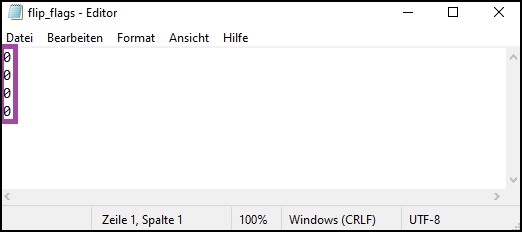

Let's take a closer look at the flip_flag.txt file:

• For each image, there must be a corresponding flip-flag.
• The flip-flag determines whether an image should be flipped during analysis:
  • 0 = no flip
  • 1 = flip the image
• If the number of flip-flags and images does not match, an error will be raised.

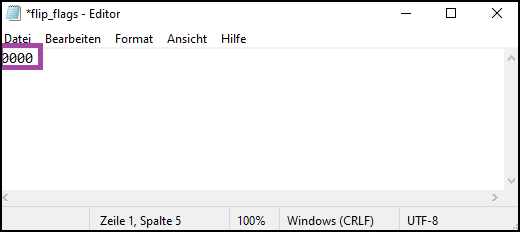

When using multiple subfolders, the flip-flag file format looks like this:

• None of the example images must be flipped — their fascicle orientation is already correct, with fascicles originating at the bottom left and inserting at the top right.

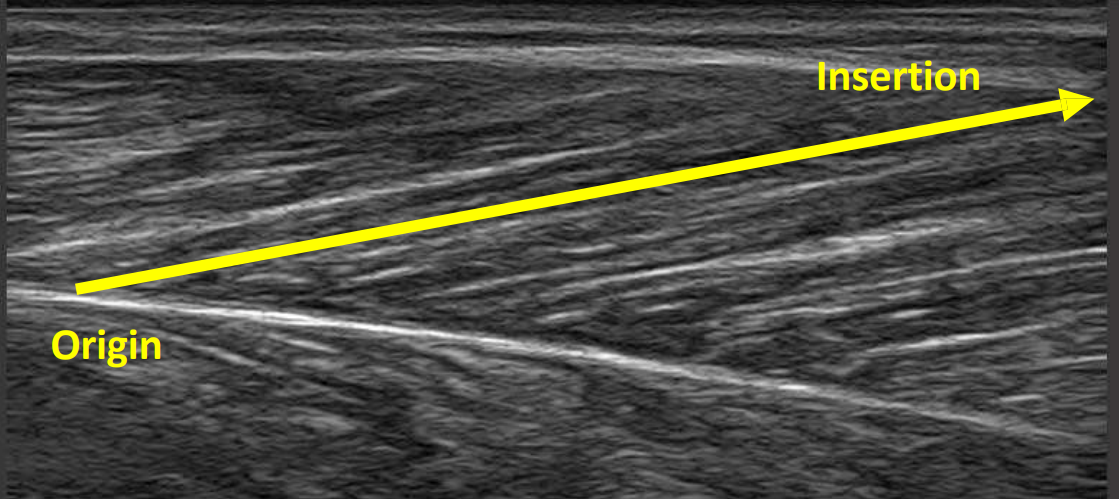

• Below is a visual representation of the correct fascicle orientation.
  If your fascicles are oriented differently, please specify a 1 flip-flag for those images.

2. Specifying Input Directories in the GUI

Once the GUI is opened, the first step of every analysis in DL_Track_US is to specify the input directories.

• First, specify the path to the folder containing the images to be analysed.
  Remember, this was the folder DL_Track_US_v0.3.0/images.

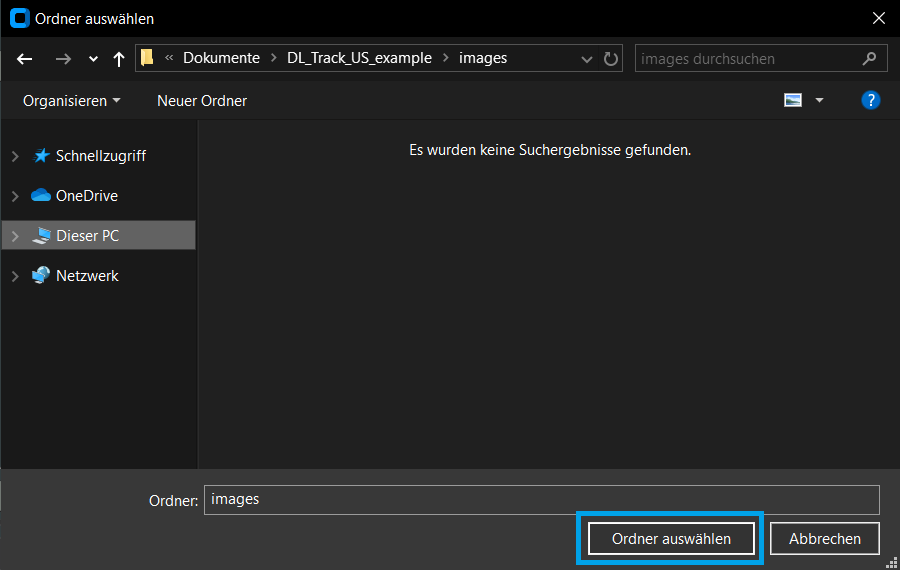

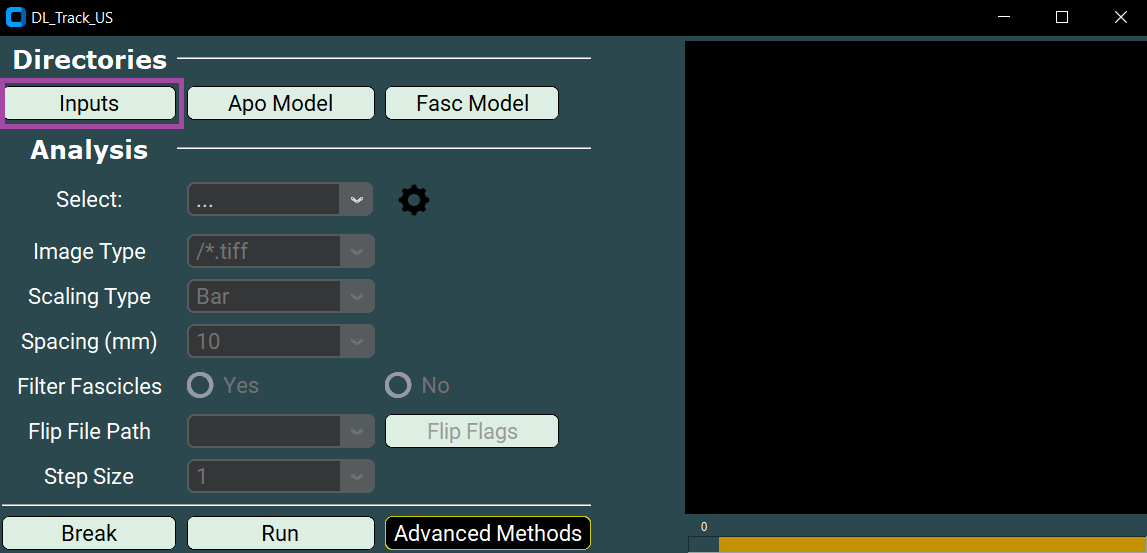

  • Click the Inputs button. A selection window opens where you can select the folder.
  • Click Select folder to confirm your choice.

• Second, specify the absolute path to the aponeurosis neural network.
  This is located in the DL_Track_US_v0.3.0/DL_Track_US_models folder.

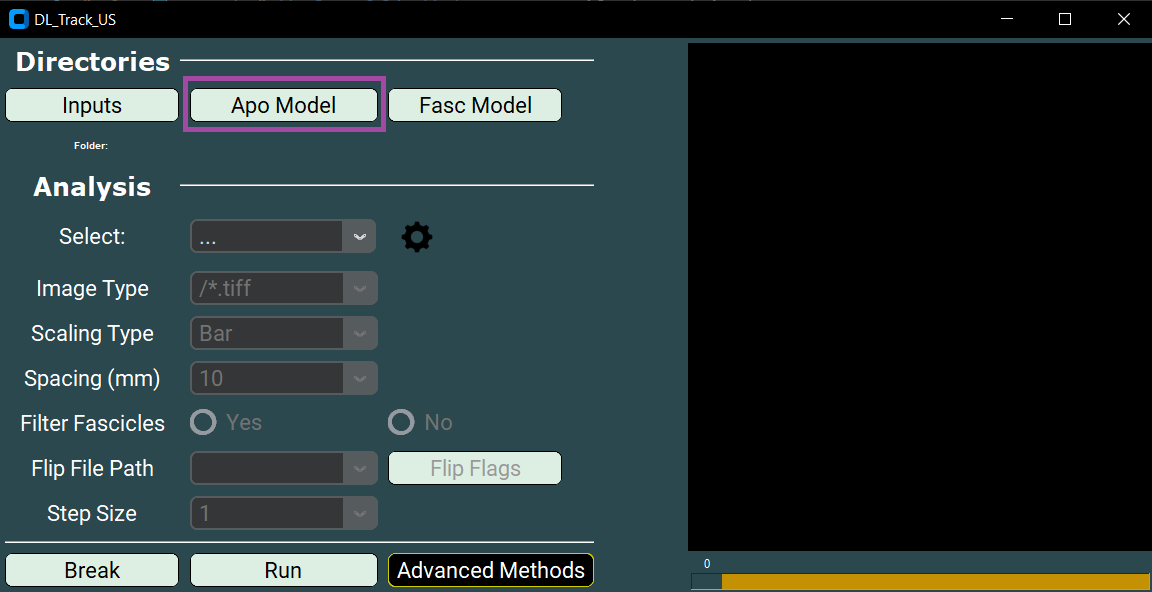

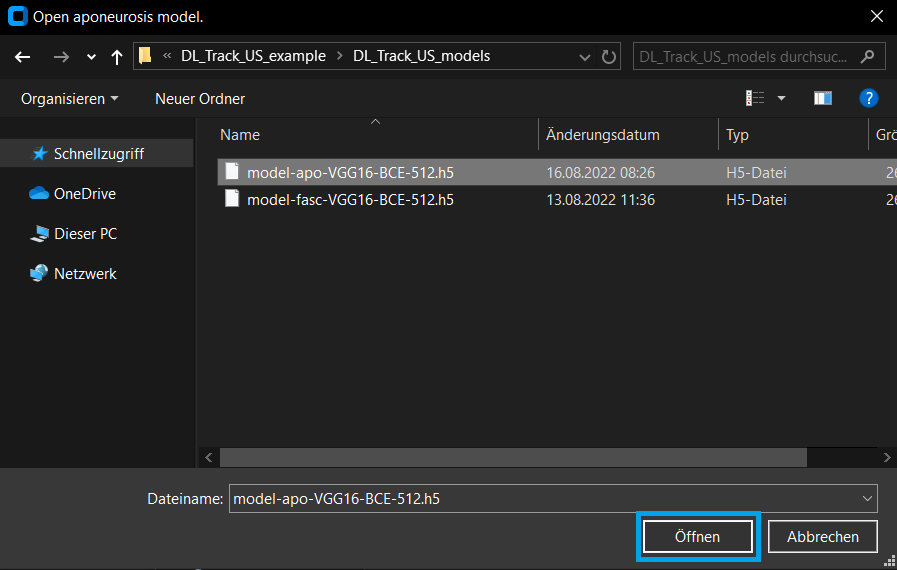

  • Click the Apo Model button to open a selection window.
  • Select the aponeurosis model and click Open.

• Third, specify the absolute path to the fascicle neural network (also located in DL_Track_USv0.3.0/DL_Track_US_models).

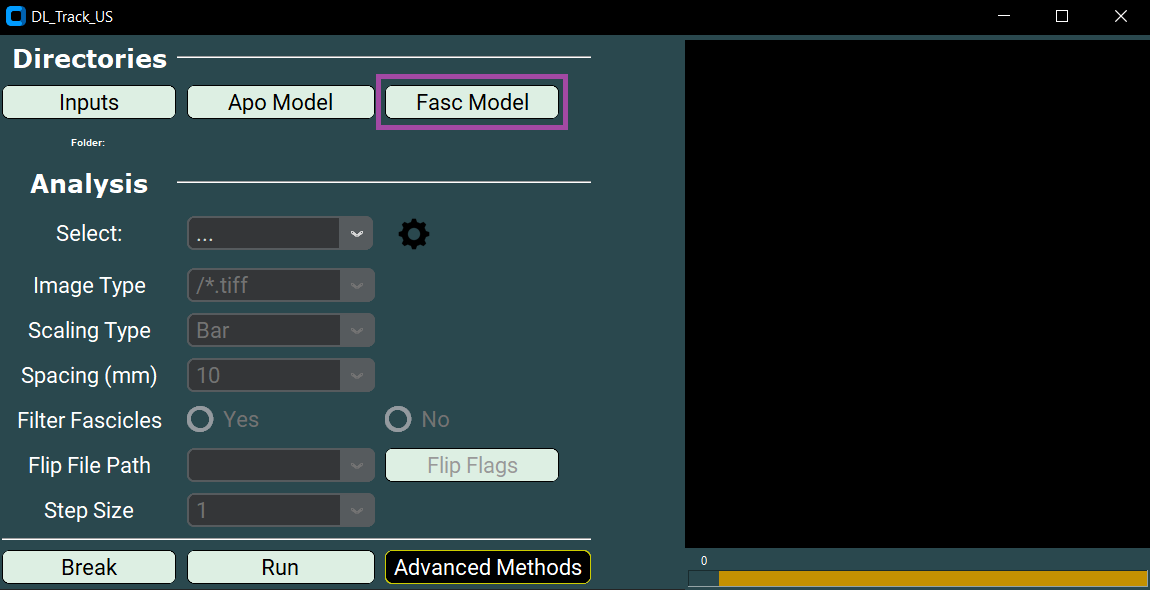

  • Click the Fasc Model button

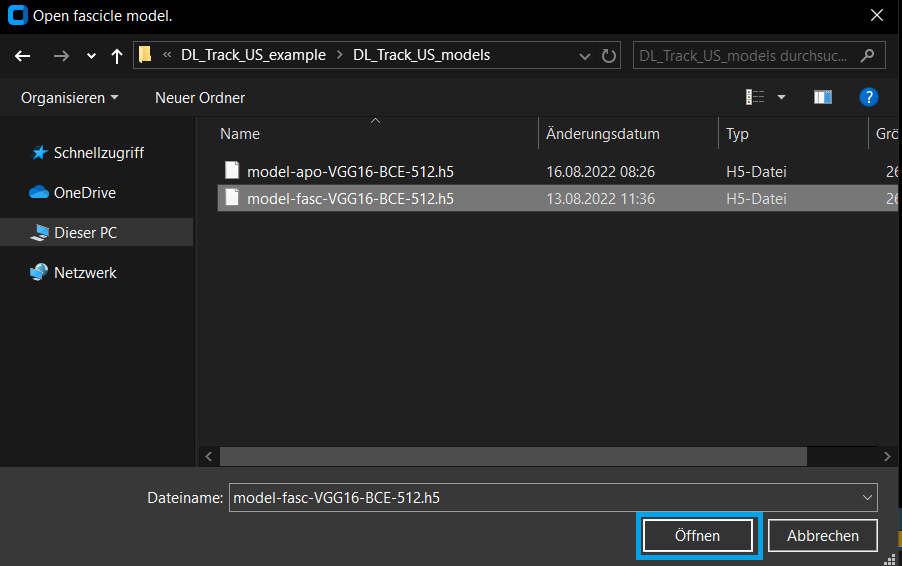

  • Select the VGG16 fascicle neural network file from DL_Track_US_v0.3.0/models.
  • Confirm by clicking Open.

---

In the next step, you will specify all relevant analysis parameters, including the analysis type.
We will explain what each parameter controls.

3. Specifying Analysis Parameters

As a first step, select the correct analysis type in the GUI:

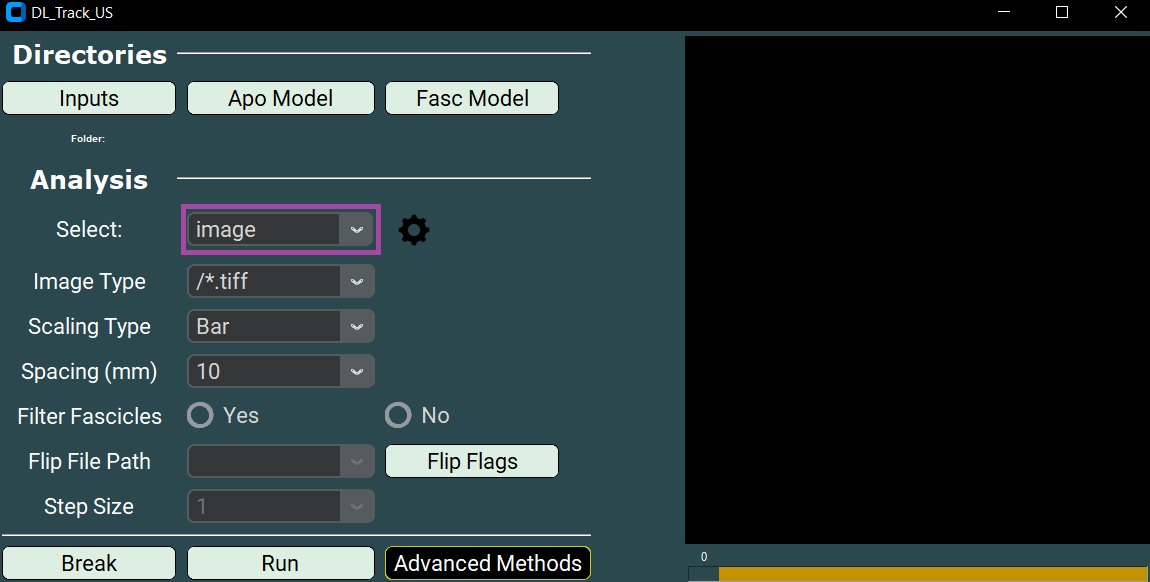

• Select image in the dropdown menu.

---

Next, you need to specify the Image Type.

• The ending of the Image Type must match the ending of your input images — otherwise no files will be found.
• You can either select a pre-specified ending from the dropdown list or type in your own.
• Please keep the formatting similar to the provided examples.

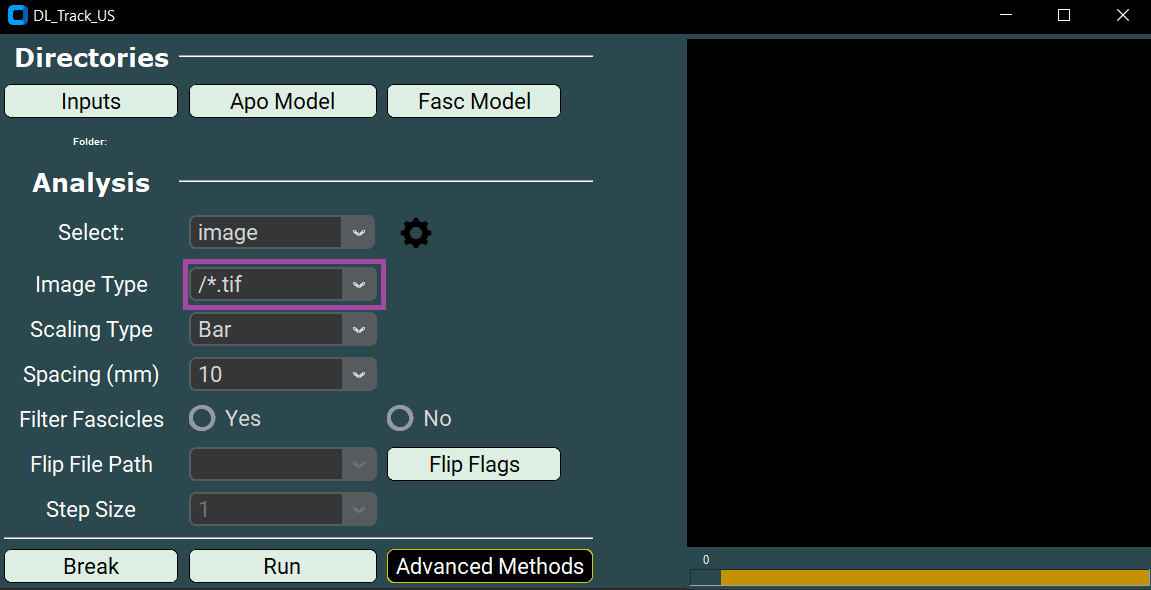

• In the DL_Track_US_v0.3.0/images folder, the images are of type “/*.tif”.

---

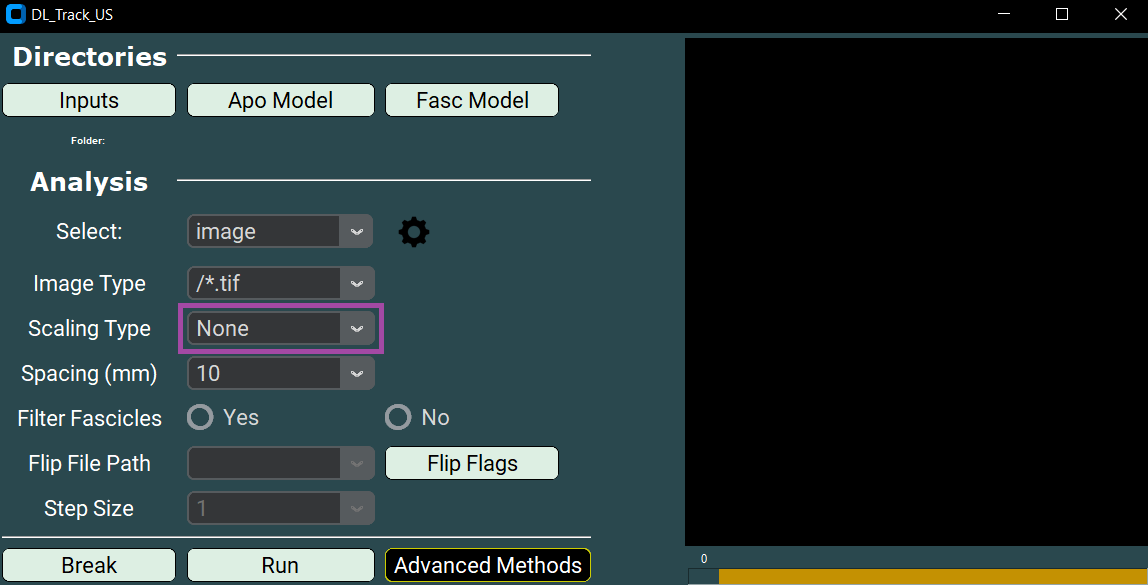

Then, specify the Scaling Type.

• Scaling converts measurements from pixels to centimetres.
• There are three scaling types available:
• None (no scaling),
• Bar (based on visible scaling bars),
• Manual (manual point selection).

For this tutorial, select None.

---

If you choose the Bar Scaling Type:

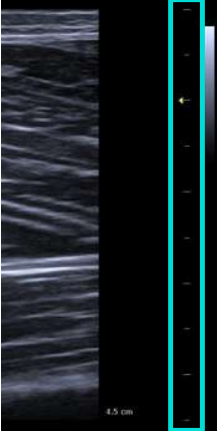

• This method works if clear scaling bars are present in your ultrasound image (usually on the right side).
• The bars do not need to be identical to the example, but they must be clearly separated and visible.

• We recommend testing the Bar Scaling Type on a small sample of your images first.
• Files that cannot be analysed with this scaling method will be listed in a failed_images.txt inside your input folder.

---

If you choose the Manual Scaling Type:

• You must manually place two points on the image at a known distance.

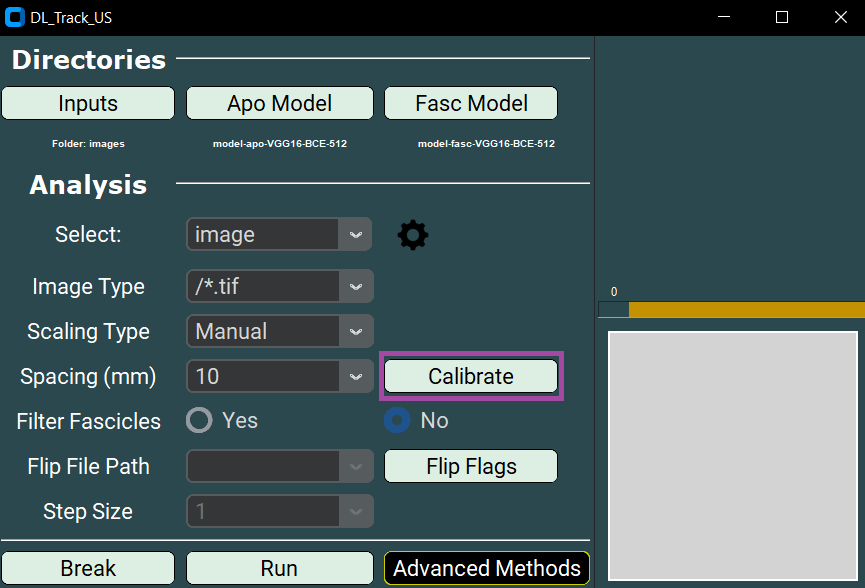

• Click the Calibrate button to begin manual calibration.

• Click once with the left mouse button to set the first point (a red dot will appear).
• Place the second point according to the real-world distance (5, 10, 15, or 20 mm).
• Afterwards, click Confirm.

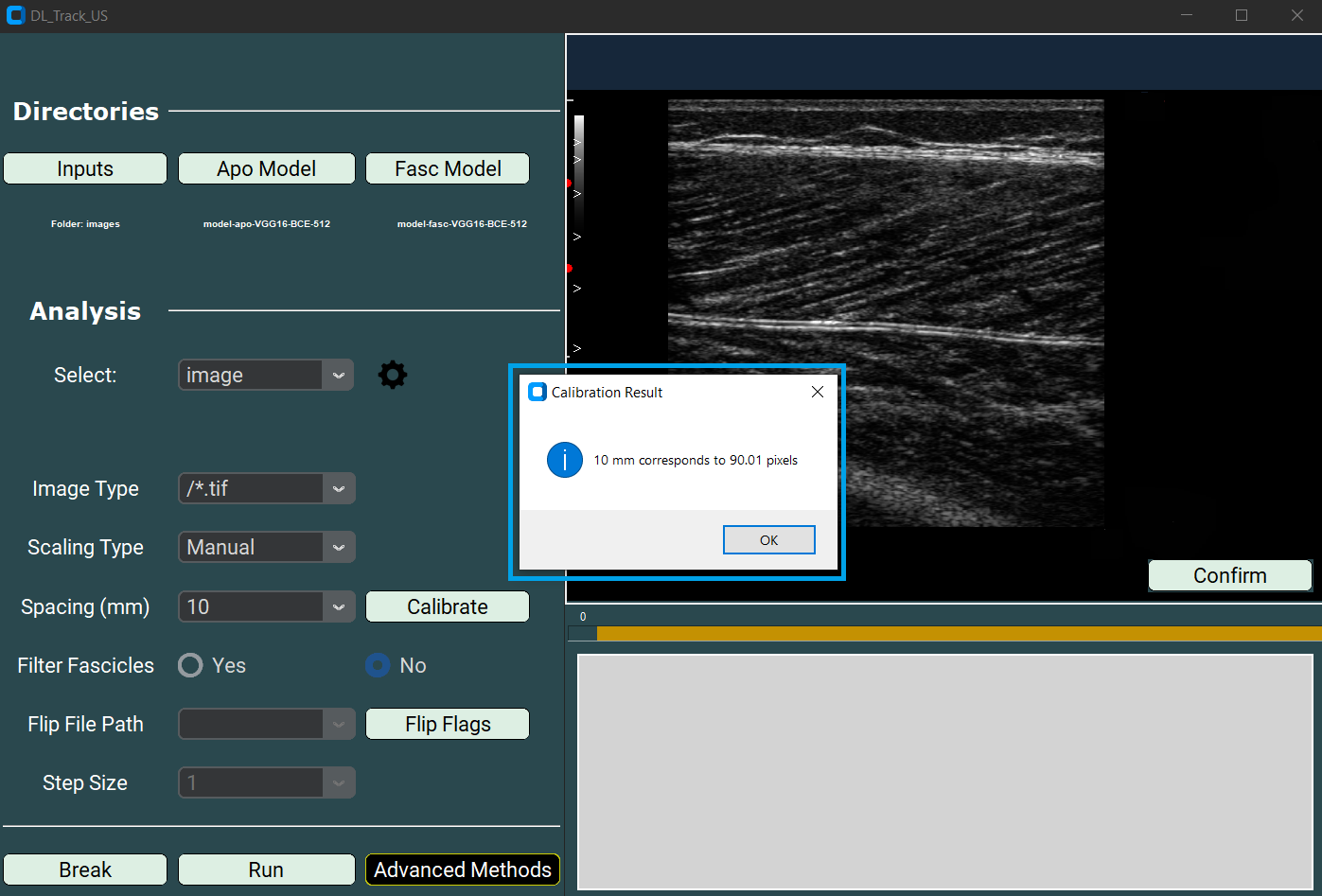

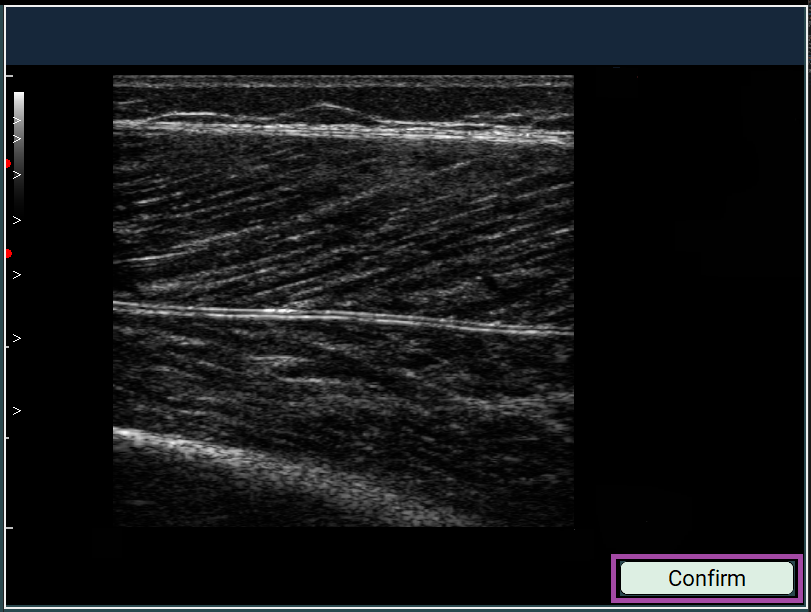

• A message box will appear showing the corresponding pixel distance.

---

Regardless of scaling type, whenever you use Bar or Manual scaling:

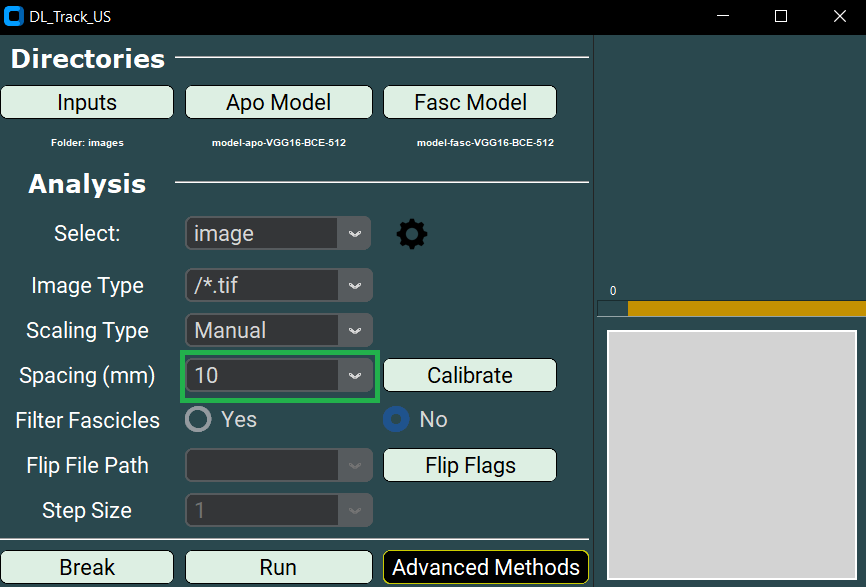

• You must also set the Spacing parameter.
• Select 5, 10, 15, or 20 millimetres from the dropdown.

For this tutorial, the Spacing parameter is not necessary since scaling is set to None.

---

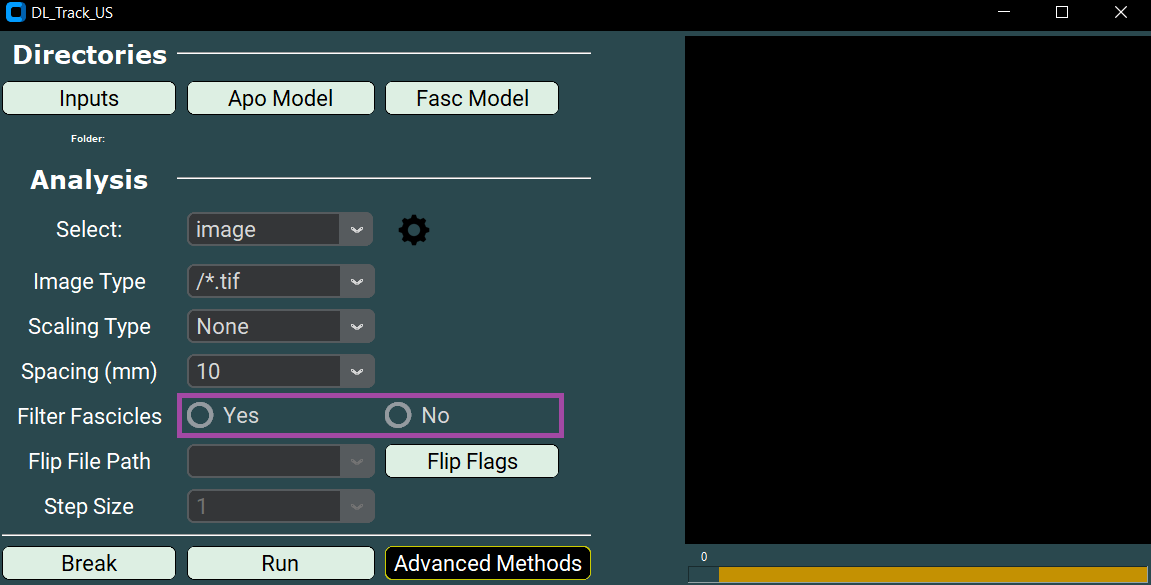

Another setting is the Filter Fascicle option:

• You can choose YES or NO.
• If set to YES, all fascicles that overlap are removed during post-processing.

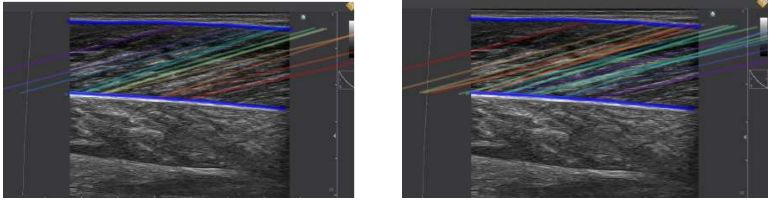

Below you can see examples of the results with and without fascicle filtering:

---

As the next step, specify the path to the flip_flag.txt file:

• Click the Flip Flags button.

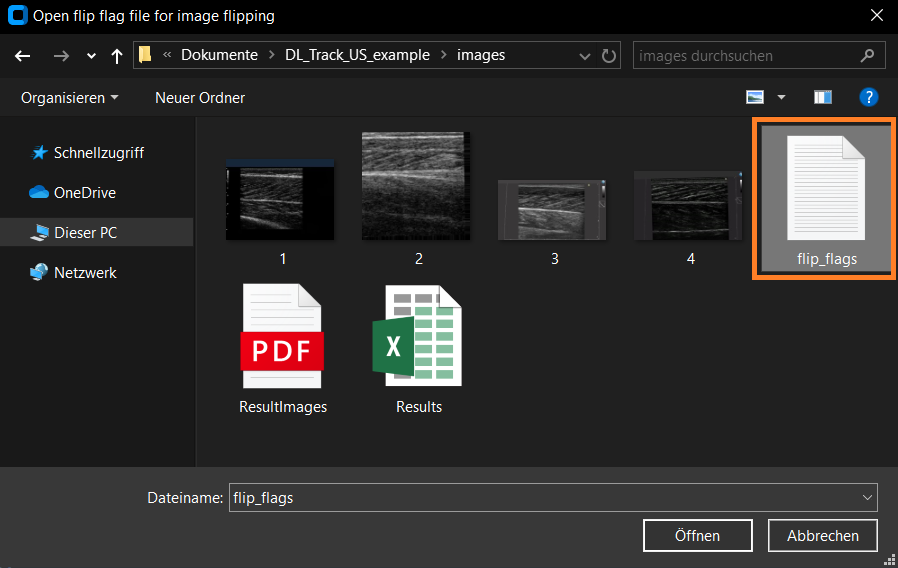

• Select the flip_flag.txt file, located in the DL_Track_US_example/images folder.
• Ensure that the number of flip flags matches the number of images.

4. Adjusting Settings

As a last step before starting the analysis, you need to adjust the settings used by the aponeurosis and fascicle neural networks.

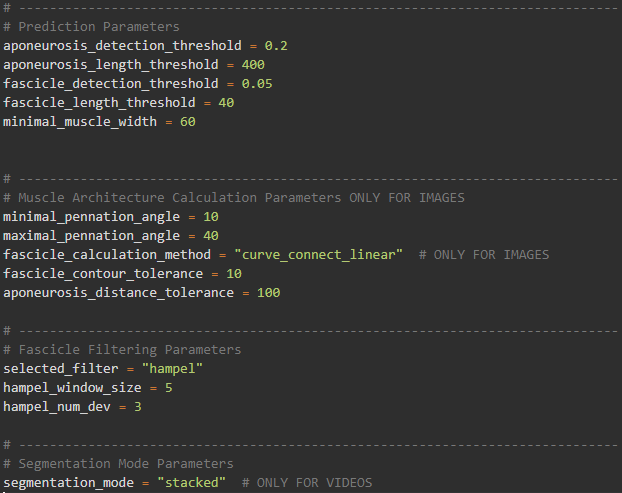

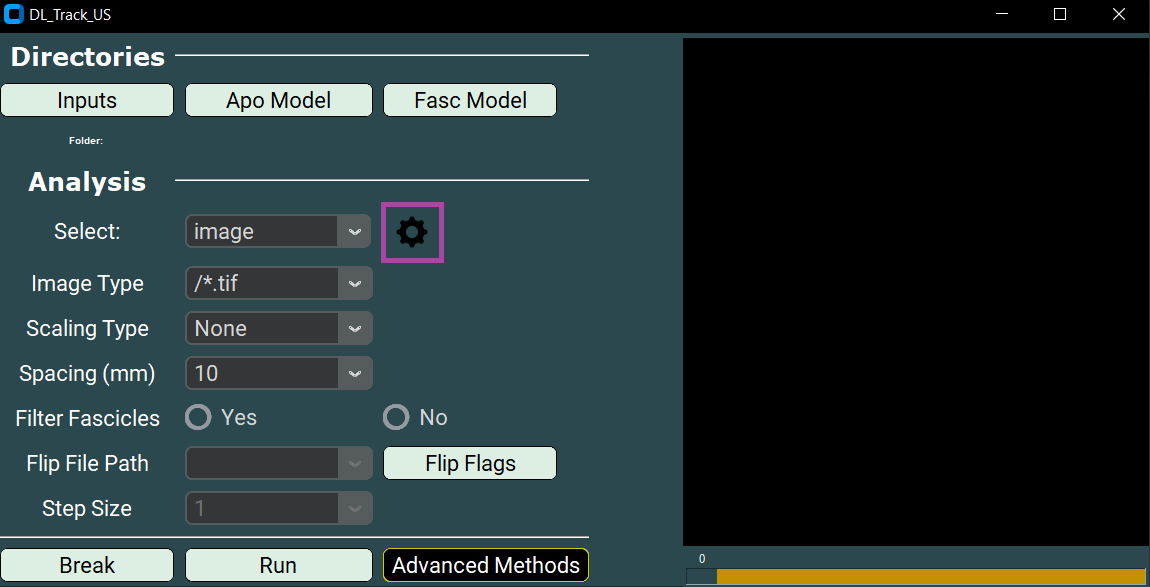

• Click the settings wheel button in the GUI.
  This will open the settings.py file in your default text editor.

• The settings.txt file contains a dictionary of all relevant analysis parameters.

• Default values are listed, and each parameter is explained at the top of the file.

---

Key parameters explained:

• Aponeurosis detection threshold:
  Minimum probability a pixel must reach to be classified as aponeurosis.
  Lower values include more pixels.

• Aponeurosis length threshold:
  Minimum or maximum length of structures detected as aponeuroses.

• Fascicle detection threshold and fascicle length threshold:
  Same as above, but for fascicles.

• Minimal muscle width:
  Minimum distance between superficial and deep aponeuroses.

• Minimal and Maximal Pennation angles:
  Range of physiologically possible pennation angles for the muscle.

• Fascicle calculation method:
  Method used to calculate fascicle length.
  Options:

  1. linear_extrapolation
  2. curve_polyfitting
  3. curve_connect_linear
  4. curve_connect_poly
  5. orientation_map

• Fascicle contour tolerance:
  Minimum acceptable fascicle length. Lower values allow shorter segments.

• Aponeurosis distance tolerance:
  Maximal allowed distance from fascicles to aponeuroses for valid measurements.

• Selected filter:
  Method used to filter outliers from fascicle length and pennation angle data.

Options:

1. `hampel` (default)
2. `median`
3. `gaussian`
4. `savitzky_golay`

• Hampel window size:
  Number of data points considered during outlier detection.

• Hampel number of deviations:
  Number of standard deviations for outlier detection.

• Segmentation mode:

• none ➔ images are segmented separately
• stacked ➔ three frames are stacked (used for videos only)

---

💡 Tip:
Adapt these parameters according to your images or videos!
Correct parameter settings can greatly impact your analysis results.

For future analyses, always test parameter settings on a small sample of your data first. Especially, choose a pennation angle range that is physiologically plausible with a minimum range.

If you accidentally disrupt the settings.txt file, there is a backup available: _backup_settings.py (only when downloading the repository).

5. Running / Breaking DL_Track_US

After completing all setup steps, you are ready to start the analysis.

• Click the Run button in the main GUI window to begin processing.
• You will also see a Break button in the GUI.
• Clicking Break allows you to stop the analysis at any time.
• The currently processed image will be completed,
• Then the analysis will terminate..

---

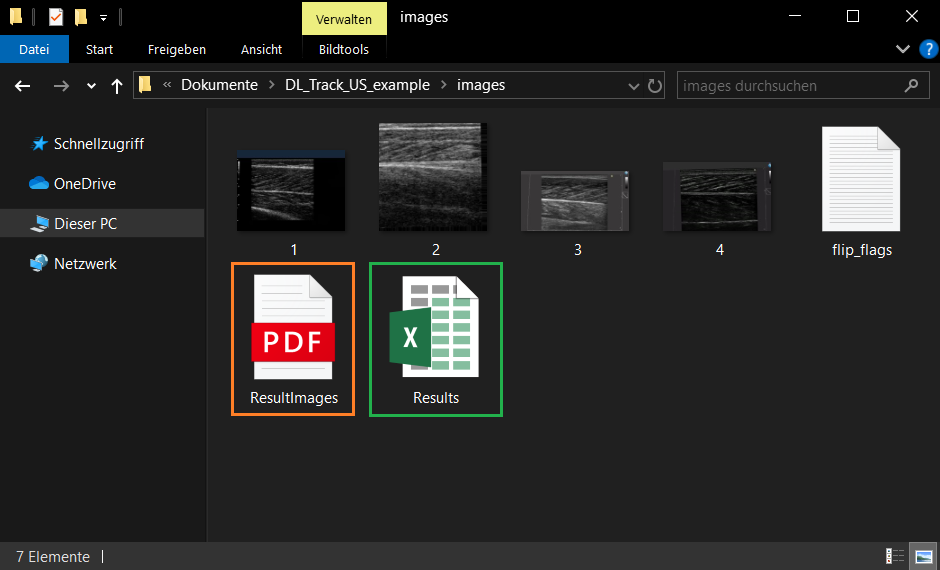

Two output files will be created inside the DL_Track_US_example/images folder:

• ResultImages.pdf:
• A multi-page PDF.

• Each page shows an input image with predicted fascicles and aponeuroses drawn over it.

• Results.xlsx:

• An Excel file containing the estimated architectural parameters for each image.
• Each row corresponds to an input image.
• Median fascicle length, median pennation angle, and calculated muscle thickness are provided.

📄 Important:
The ResultImages.pdf can only be opened once the Results.xlsx has been fully generated.

---

🎉 Congratulations! You have now completed the DL_Track_US tutorial for automated image analysis!

Before finishing, it is important to review the error handling procedures in case something unexpected occurs.

6. Error Handling

During analysis, DL_Track_US has robust error handling to ensure you can identify and correct problems easily.

Whenever an error occurs:

• A message box will open inside the GUI.
• It will explain what went wrong and suggest how to fix it.

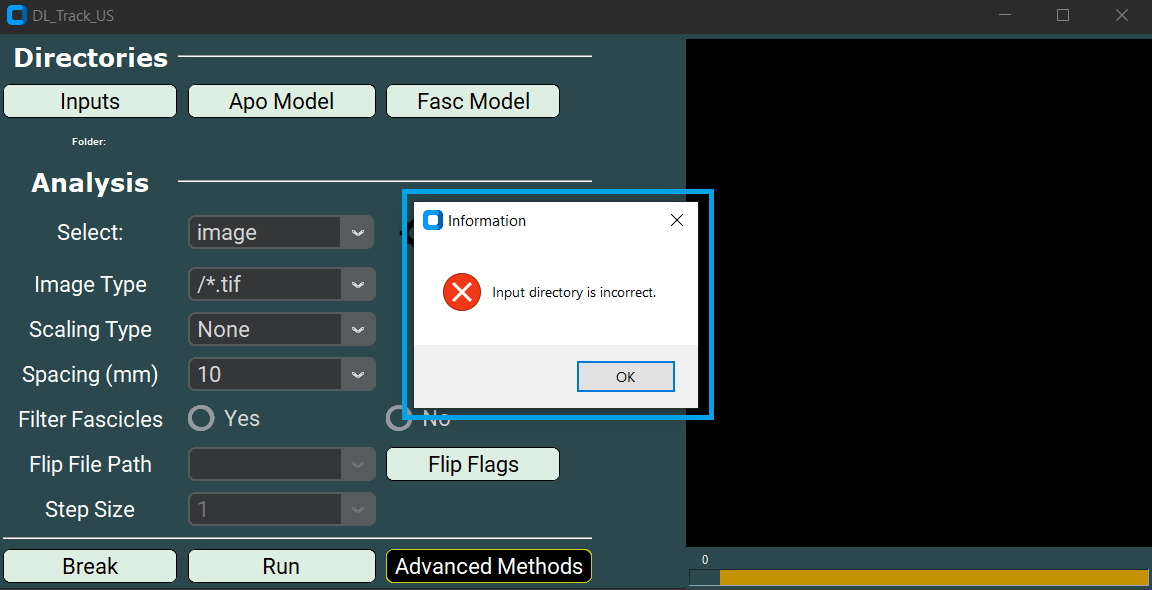

Example of an error message:

---

We have tried to make all error messages as concise and informative as possible.
Simply follow the instructions in the error box and restart the analysis after resolving the issue.

⚠️ Note:
If an unexpected error occurs that is not caught by a message box,
please report it in the DL_Track_US Discussion Forum - Q&A Section.

When reporting an issue:

• Please include a description of the problem,
• Steps to reproduce the issue,
• And (if possible) screenshots of the GUI and error message.

---

By following these guidelines, we can continuously improve DL_Track_US.
